Secure Architecture for Critical Infrastructure

Masami Ueno, Shingo Kashima, Yuminobu Igarashi,
and Masahiro Hori

Abstract

Recent developments such as the Internet of Things mean that a wide variety of equipment is now being connected to networks. It is feared that this trend could lead to further increases in threats to cybersecurity. At NTT Secure Platform Laboratories, we are working on technology that can be used to protect critical infrastructure networks by investigating security incidents, automating the analysis and handling of incidents, and reducing latent security risks in devices and equipment.

Keywords: critical infrastructure, wide area networks, IoT

PDF PDF

1. Introduction

As the Internet of Things (IoT) increases in scale, a growing number of devices are being connected to networks. This number has been predicted to reach 53 billion by 2020 [1]. The increasing quantity of equipment connected to networks poses an increased threat to cybersecurity. For example, there are already reports of online surveillance camera systems and video recorder equipment being infected with malware and incorporated into a botnet that was used to launch cyber-attacks including DDoS (distributed denial of service) attacks on other information technology (IT) services [2, 3]. IT is also being rapidly adopted in various key infrastructures including telecommunications, finance, aviation, rail transport, electricity, and gas with the aim of improving service quality and reducing costs, and several cases have been identified where this increased dependence on IT has adversely affected infrastructure services due to system failures [4–6].

Thus, even critical infrastructure networks are having to face increased threats due to the growing quantity of equipment connected to them, and countermeasures should be discussed urgently. This article discusses security countermeasures that can protect diverse kinds of key infrastructures from cyber-attacks, focusing in particular on the wide area networks*1 that form part of the key infrastructure used by the communication industry.

*1 Wide area network: General term for a network with a broader reach than a local area network (LAN), which would typically be used by a single organization. Specific examples include networks that use leased lines to interconnect geographically distant LANs, and virtual private networks built on the Internet.

2. Wide area network security

Traditionally, the security of a network is maintained by defining a secure zone where a security policy is enforced, and a non-secure zone where security may not be enforced, and by taking steps to protect the secure zone at the boundary between the two zones. Even in wide area networks, when seen from the viewpoint of the network provider, the facilities run by the network operator can be assumed to constitute a secure zone where security is adequately enforced, while the client-side facilities that lie beyond the customer premises equipment (CPE)*2 such as home gateways (HGWs) and corporate routers are assumed to be a non-secure zone because they cannot be managed by the network operator, and their reliability cannot be assured. At the boundary between the CPE and network operator equipment, a gateway device such as an edge router is installed so that the security of the network can be assured on a per-circuit basis.

In the future, however, since developments such as IoT will lead to further increases in the amount of equipment connected to client-side facilities, it is envisaged that traffic will need to be controlled by CPE devices situated closer to this equipment.

*2 CPE: Equipment installed at the premises of an Internet service client in order to connect to the network.

3. Mechanisms for protecting the security of a wide area network

To maintain the security of a wide area network and take prompt measures when any sort of incident such as an infection or attack has occurred, it is necessary to have mechanisms that can detect incidents, determine what countermeasures to apply to the detected incidents, and then implement these measures. Although the response mechanism for major security incidents is the same as the conventional approach, safeguarding the security of a wide area network in today’s changing environment requires CPE devices that detect and deal with incidents in equipment in the non-secure zone while cooperating with mechanisms inside the secure zone. Since the CPE devices are situated at the boundary of the secure and non-secure zones, it is essential to take steps to mitigate their inherent risks (latent defects and misconfigurations, malware illegally embedded prior to shipment, etc.) and physical risks (illegal replacement of components, etc.).

In the following sections, we describe the technologies for behavior monitoring/analysis, security orchestration, and authenticity/integrity verification that are being researched and developed at NTT Secure Platform Laboratories to address these issues (Fig. 1).

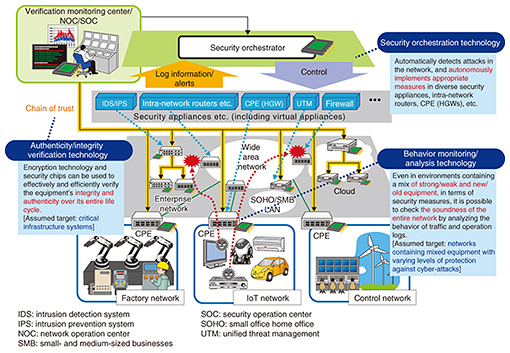

Fig. 1. Security technology research and development.

4. Behavior monitoring/analysis technology

Intrusion detection systems (IDS) and intrusion prevention systems (IPS)*3 are two examples of intrusion detection mechanisms for the protection of IT equipment. However, these systems are mainly targeted at personal computers and servers, and there are currently only a few products compatible with critical infrastructure systems or IoT equipment. In particular, IoT equipment and the control/monitoring equipment used in critical infrastructures and factories are typically deployed over a wide area and connected to the network in very large numbers, and they operate autonomously and unattended in a wide variety of environments. This differs significantly from the configuration of traditional IT equipment. Furthermore, since IoT equipment is often designed and produced for a specific application, it can be difficult for the equipment itself to implement security measures due to issues such as the equipment having limited functions or performance (equipment with security weaknesses), or being used continuously for long periods without regular security updates (old equipment).

To address this issue, we are researching behavior monitoring/analysis technology aimed at promptly ascertaining signs of security deterioration in the overall health of the system by detecting abnormal behavior in peripheral network equipment. More specifically, we are researching an anomaly detection technique whereby CPE devices such as HGWs placed at the perimeter of a non-secure zone are used to gather statistical information from the communication traffic and operating logs of old equipment or equipment with low security levels for which it is difficult to implement individual security measures. This information is used to construct an analysis model that represents the healthy state of a system containing the characteristics and usage patterns of the equipment, from which it is possible to discover behavior that departs from the normal (healthy) behavior exhibited.

*3 IDS/IPS: The detection of fraudulent activity from outside the targeted IT system or network, or a defense system that performs such detection.

5. Security orchestration technology

For the analysis and handling of detected incidents, most security product vendors provide products where the detection and control functions are linked by proprietary security appliances and the like, but these only work with the vendor’s own products, or with the products of certain affiliated companies.

At NTT Secure Platform Laboratories, we are developing security orchestration technology as a vendor-agnostic framework for the automation and semi-automation of security operations that can link together the detection and analysis functions of diverse security equipment, and we are making it available to NTT Group companies. We have developed this as technology that cooperates with the operation of office security appliances and datacenters where there have been clear security vulnerabilities. As further developments in IoT are achieved in the future, we intend to expand the technology to orchestration including CPE devices such as HGWs. For example, by restricting the sources and destinations of traffic through the use of resources such as a pre-prepared whitelist for IoT devices that transmit data to few destinations, it is possible to implement traffic control on a per-equipment basis such as restricting or blocking the flow of traffic when an issue has arisen.

6. Authenticity/integrity verification technology

Security devices that perform detection and control functions are typically placed in the non-secure zone together with CPE devices. If the degree of confidence can be increased by reducing the latent risks and physical risks of these devices, then even if an incident does occur, it will be possible to deal with it more promptly.

At NTT Secure Platform Laboratories, we are working to increase the reliability of these devices and the equipment connected to them by researching a technique for reliably identifying the controlled equipment (authenticity verification) and a technique for confirming the correctness of software running in this equipment (integrity verification).

6.1 Authenticity verification

The purpose of our authenticity verification technique is to confirm that the control and communication equipment itself is operating correctly and is not being spoofed. This is done by designating a dedicated server node as the root of trust, and constructing a chain of relationships (trust links) from tamper-resistant components that extend this root of trust out to each item of equipment. Cryptography is used in this chain to authenticate the equipment, thereby confirming the authenticity of the system as a whole. The tamper-resistant components used here have mechanisms that are very difficult to analyze externally or extract data from without authorization, and are therefore able to handle cryptographic keys safely.

6.2 Integrity verification

The purpose of integrity verification is to confirm that the software and data in control and communication equipment have not been tampered with. This is done by checking that the software in the equipment matches the correct values stored in tamper-resistant components based on the chain of trust established by the authenticity verification technology. Integrity verification has the advantage of ensuring scalability for the entire system and takes the entire software life cycle into account.

7. Future prospects

We have introduced countermeasures for wide area networks in order to protect the security of key infrastructures in situations where the amount of equipment connected to the network is expected to increase dramatically. Dealing promptly with the occurrence of any incident such as an infection or attack requires a mechanism for analyzing the incident and deciding what countermeasures to use, a mechanism for deploying these countermeasures, and a mechanism for reducing the inherent and physical risks of the equipment. At NTT Secure Platform Laboratories, we are working to address these needs with behavior monitoring/analysis technology, security orchestration technology, and authenticity/integrity verification technology. These technologies can be used not only in wide area networks but anywhere IT has been introduced to keep up with communication trends. In the future, we plan to make this technology applicable to many more areas including critical infrastructure systems.
